Easy loading for scooters in your motorhome

AL-KO has launched a new loading system to make it easy to get a scooter into the rear garage of a motorhome. The Trineo loading system weighs just 22kg including the folding access ramp, so it uses up hardly any of the available payload. It doesn't require much space either as only the guide rails and electric motor need to be installed in the rear garage. The front wheel sled is then attached to the rail and can be removed without any effort, so that it doesn't take up any space when not in use.

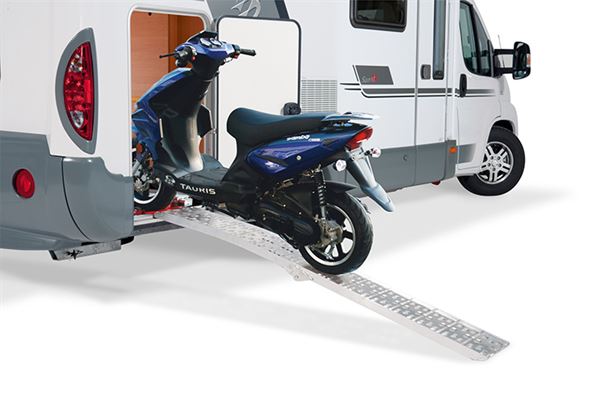

The Trineo system has a weight limit of 150kg, making it suitable for most scooter models. To load the scooter, the front wheel is simply pushed over the folding ramp into the front wheel sled. The front wheel of the scooter is then secured and lashed using the variable tyre fixing mechanism. The scooter can easily be loaded into the rear garage by remote control. This eliminates any cumbersome and strenuous loading and securing within the narrow rear garage. Once the scooter has been loaded, it's just a matter of securing the rear of the scooter with the included lashing straps.

Technical data:

Payload: 150 kg

Net weight: approx. 22kg including folding access ramp

Installation dimensions: 2000x500mm

Suitable for max. 1 scooter

Includes:

Lift mechanism with electric motor

Front wheel sled

Two remote controls - 1 x small for key ring, 1 x large for glove compartment

Folding access ramp

Two lashing straps
